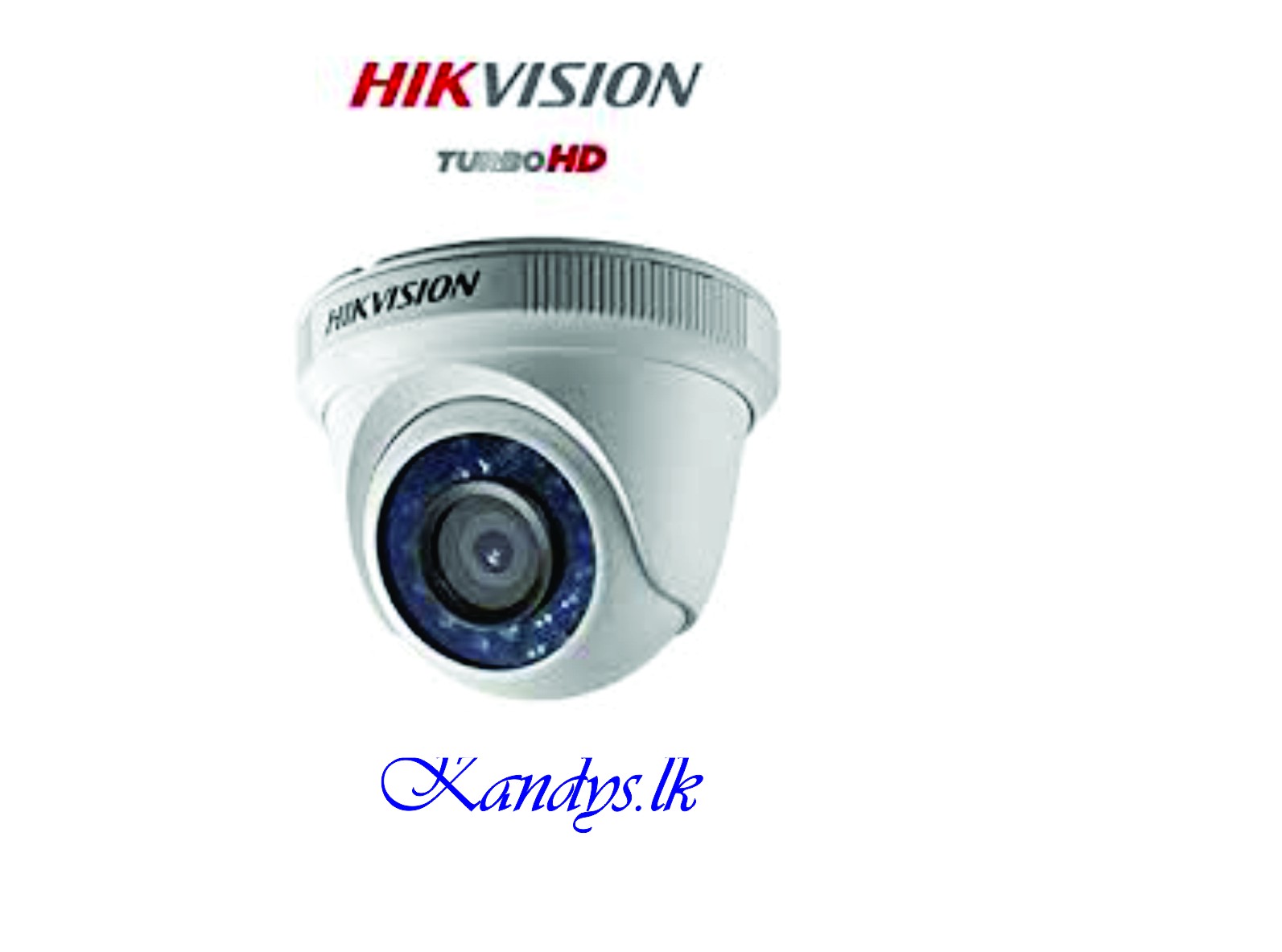

Products Infomation

Camera
Image Sensor : 2MP CMOS Image Sensor
Signal System : PAL/NTSC
Effective Pixels : 1920(H)*1080(V)
Min. illumination : 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time : 1/25(1/30)s to 1/50,000s Lens : 2.8mm, 3.6mm, 6mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)
Lens Mount : M12
Day & Night : ICR
Angle Adjustment : Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization : Internal synchronization
Video Frame Rate : 1080p@25fps/1080p@30fps
HD Video Output : 1 Analog HD output
S/N Ratio : >62dB

General
Operating Conditions : -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
Power Supply : 12 VDC±15%
Power Consumption : Max. 4W
IR Range : Up to 20m
Dimension : ?89.5 × 69.8 mm(?3.52” × 2.75”)
Weight : 250 g
